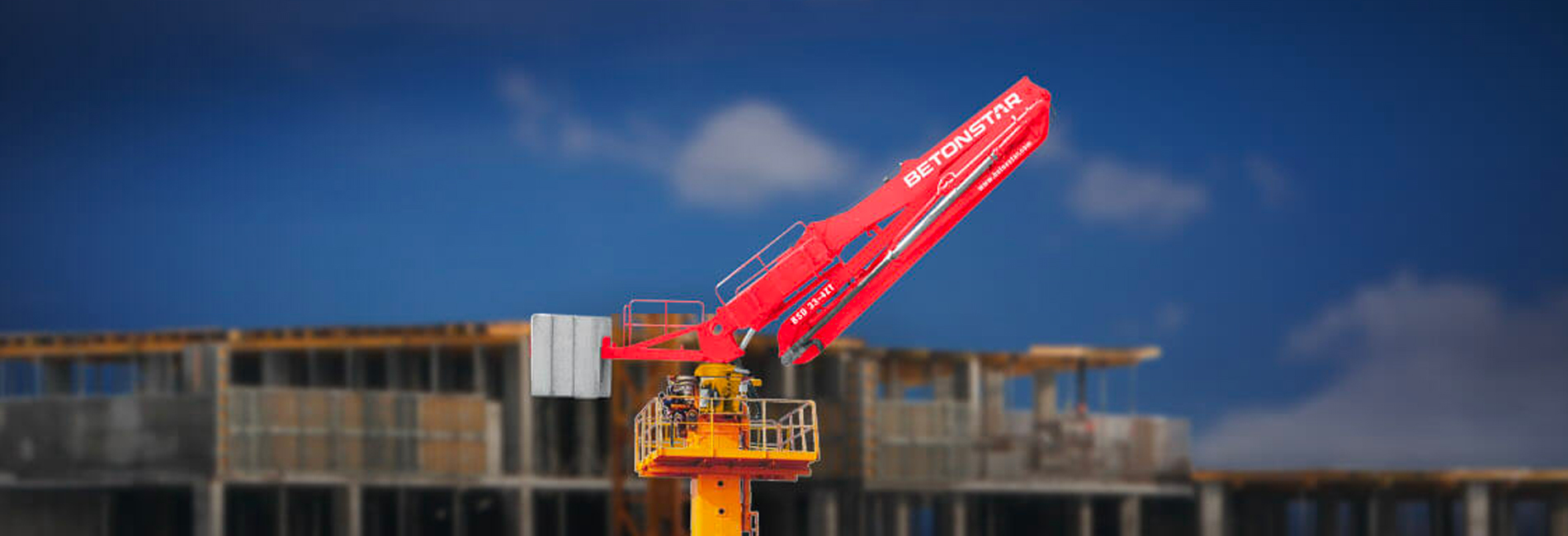

PLACING BOOMS

BSD 33-4ZT

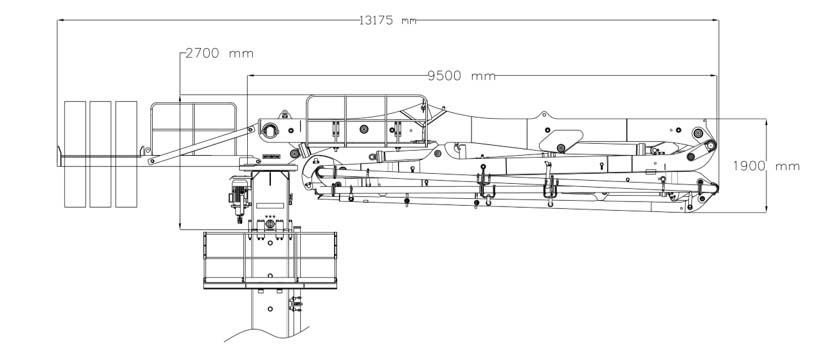

TECHNICAL DETAILS
TECHNICAL DETAILS

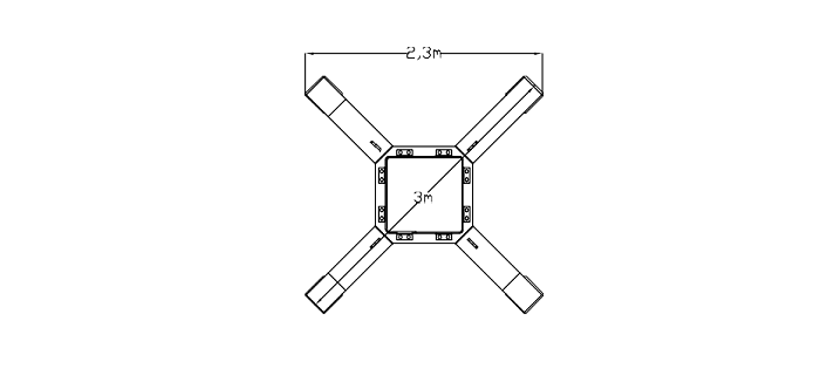

SUPPORT LEGS DIMENSIONS
SUPPORT LEGS DIMENSIONS
STANDARD EQUIPMENT

- Wireless Remote Control

- 1 x 10 m Square Column(3580 hg)

- 1 x 6 m Square Column (2400 kg)

- 3 x Counter Balans Weight

- Balans Beam

- Mast Equipmens

- Concrete end Hose

- 3 x Shaft Frame

- 3 x Ladder with rail

- 2 x Ladder

- 2 x Lifting Cylinder

- Working platform

- 1 x Heavy duty Spanner set

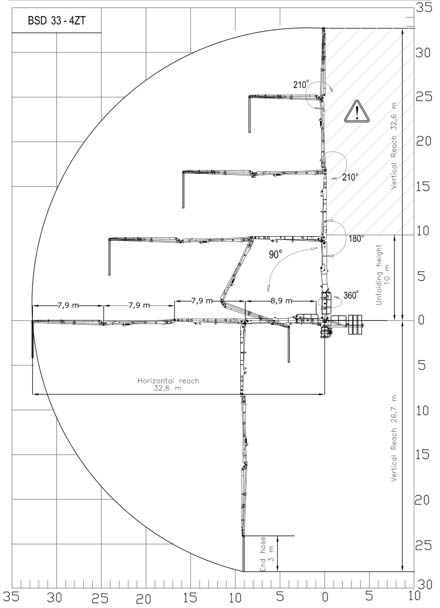

BOOM WORKING DIAGRAM
BOOM WORKING DIAGRAM
OPTIONAL

- 1 unit of transversal leg foundation base + anchorage bolts

BOOM SYSTEM

Boom Type : 4ZT

Section : 4

Boom Swing Speed : 113 sec

Boom Swinging Angle : 365°

Concrete Pipe Diameter : 125 mm

Detachable Boom Weight (TW) : 8,990 kg

(1st.section) : 4,285 kg

(2nd. section) : 4,705 kg

Column Support Frame : 1,300 kg

Drive : 15 kW Hydraulic-Electric Motor(GAMAK)
