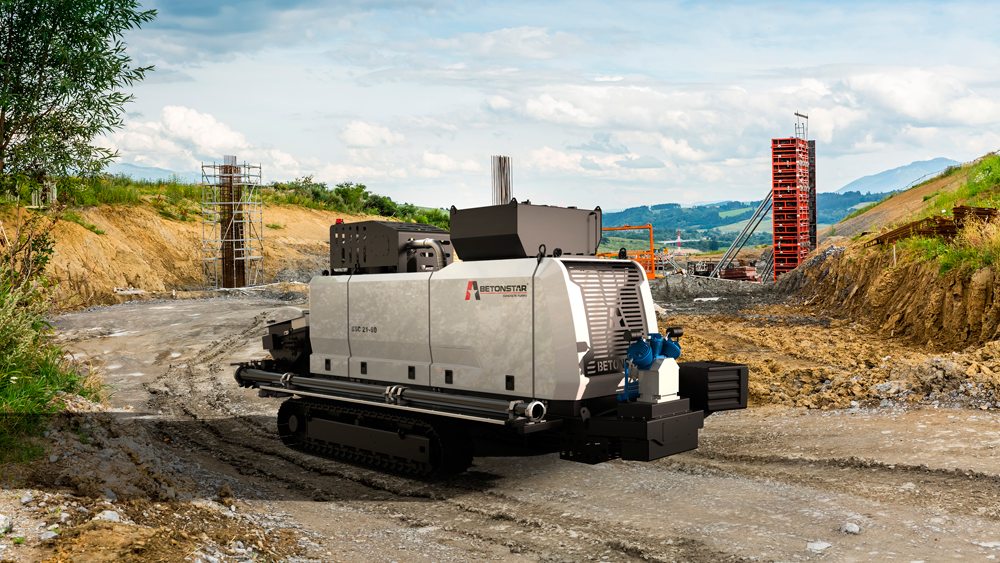

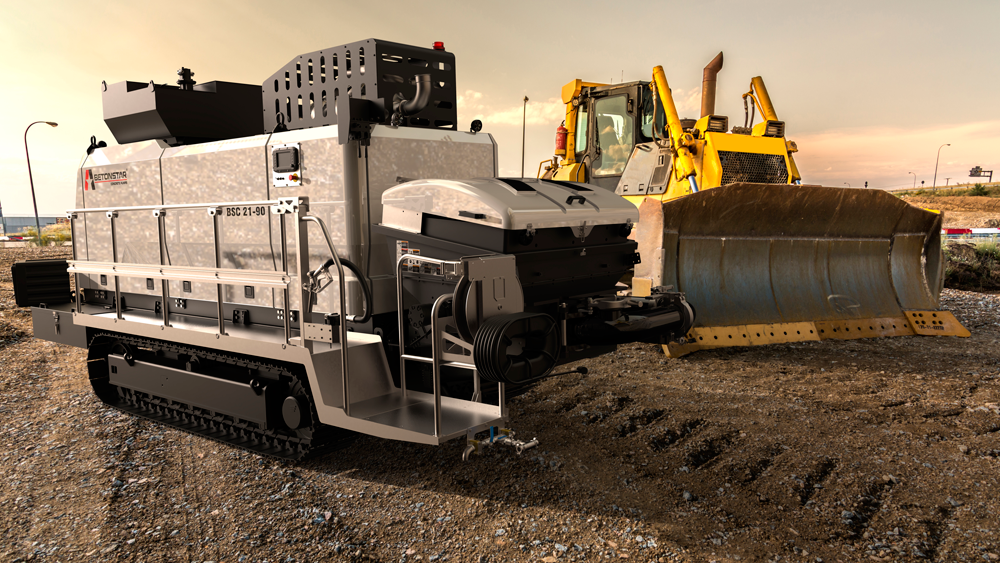

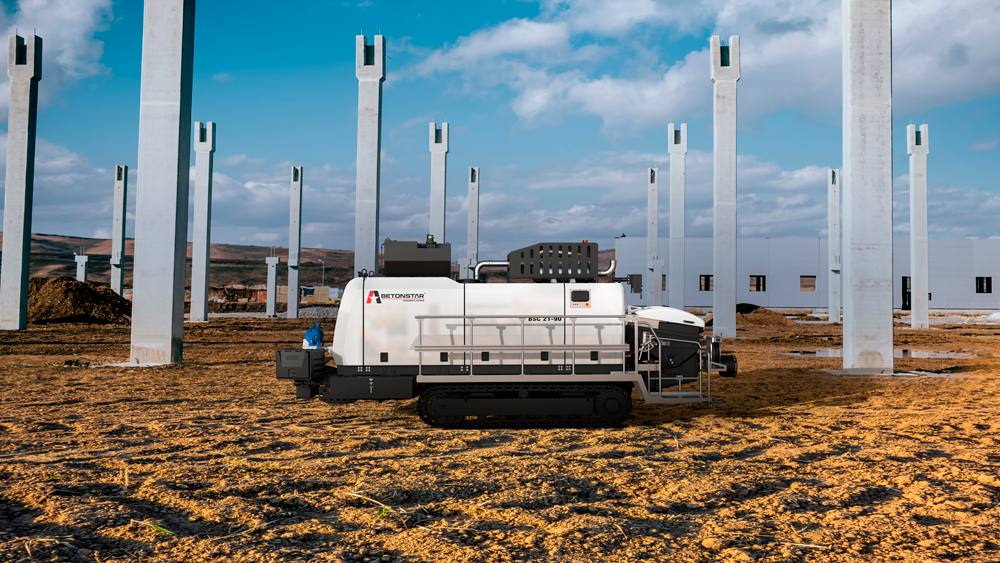

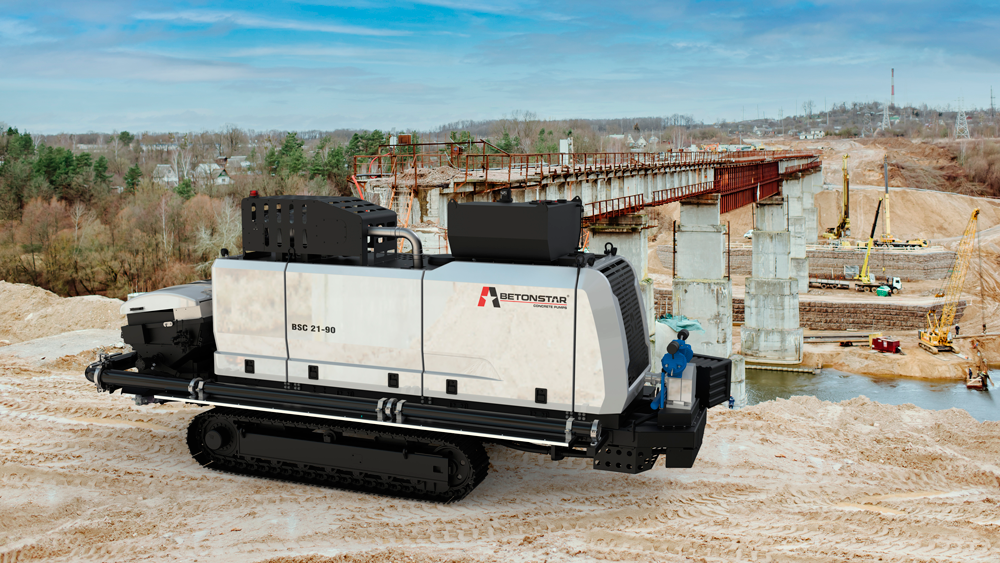

STATIONARY PUMPS

BSC 21-90

Europe Version USA Version
TECHNICAL DETAILS
TECHNICAL DETAILS

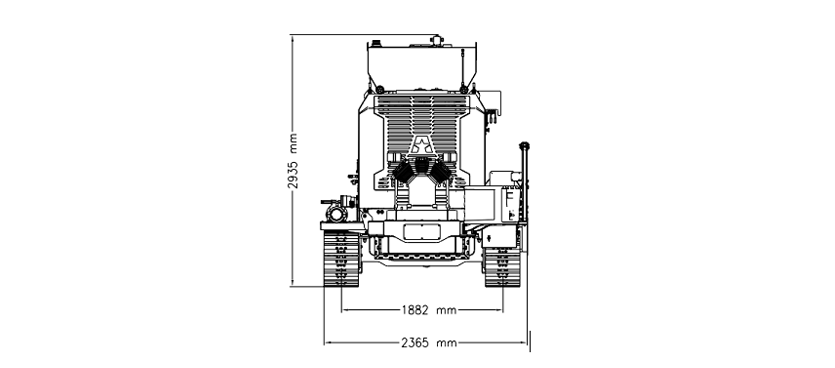

SUPPORT LEGS DIMENSIONS
SUPPORT LEGS DIMENSIONS
PUMPING UNIT

PUMPING UNIT                                               BCS 21.90.         BCS 14.90

Rod Side

Theo. Conc. Output (max)

90 m³/h

90 m³/h

Theo. Conc. Pressure (max)

92 bar

71 bar

Stroke

23 Stroke / min

34 Stroke / min

Piston Side

Theo. Conc. Output (max)

56 m³/h

61 m³/h

Theo. Conc. Pressure (max)

148 bar

106 bar

Stroke

14 Stroke / min

23 Stroke / min

Concrete Valve : S Valve System

Switch-Over Pressure S-Tube : 190 bar

Delivery Cylinders Diameter : 200 mm

Delivery Cylinders Lenght : 2100 mm (BCS 21.90) : 1400 mm (BCS 14.90)

Hopper Capacity : 650 l

Hopper Outlet Diameter : 125 mm

Reducer Output Diameter : 150 mm

Switching System : Elect. Magn. Sensor

Lubrication System : Hydraulic (LINCOLN)

Electric Box : Waterproof and PLC Controlled

CONTROL SYSTEM

■ Smartstar Control

■ Color LCD

■ Diagnostic

■ Fuel Saving Mode

■ Remote Control (Hetronic)

GENERAL

GENERAL                                          BCS 21.90                   BCS 14.90

Weight

10.500 kg

8.500 kg

Maximum Speed

2 km/h

2 km/h

OPTIONS

■ Hopper Vibrator

■ Hydraulic Driven Fan

■ Betonstar IoT System

■ Remote Control (HBC)

■ Air Compressor

■ High Pressure Cleaning Kit (140 bar)

ENGINE

ENGINE(*)       BCS 21.90                                  BCS 14.90

Power

185 kW (252 hp)

160 kW (214 hp)

WATER TANK AND PUMP

Water Pump : 67 lpm

Water Tank Capacity : 550 l and Hose 15 m

TECHNICAL DETAILS
TECHNICAL DETAILS

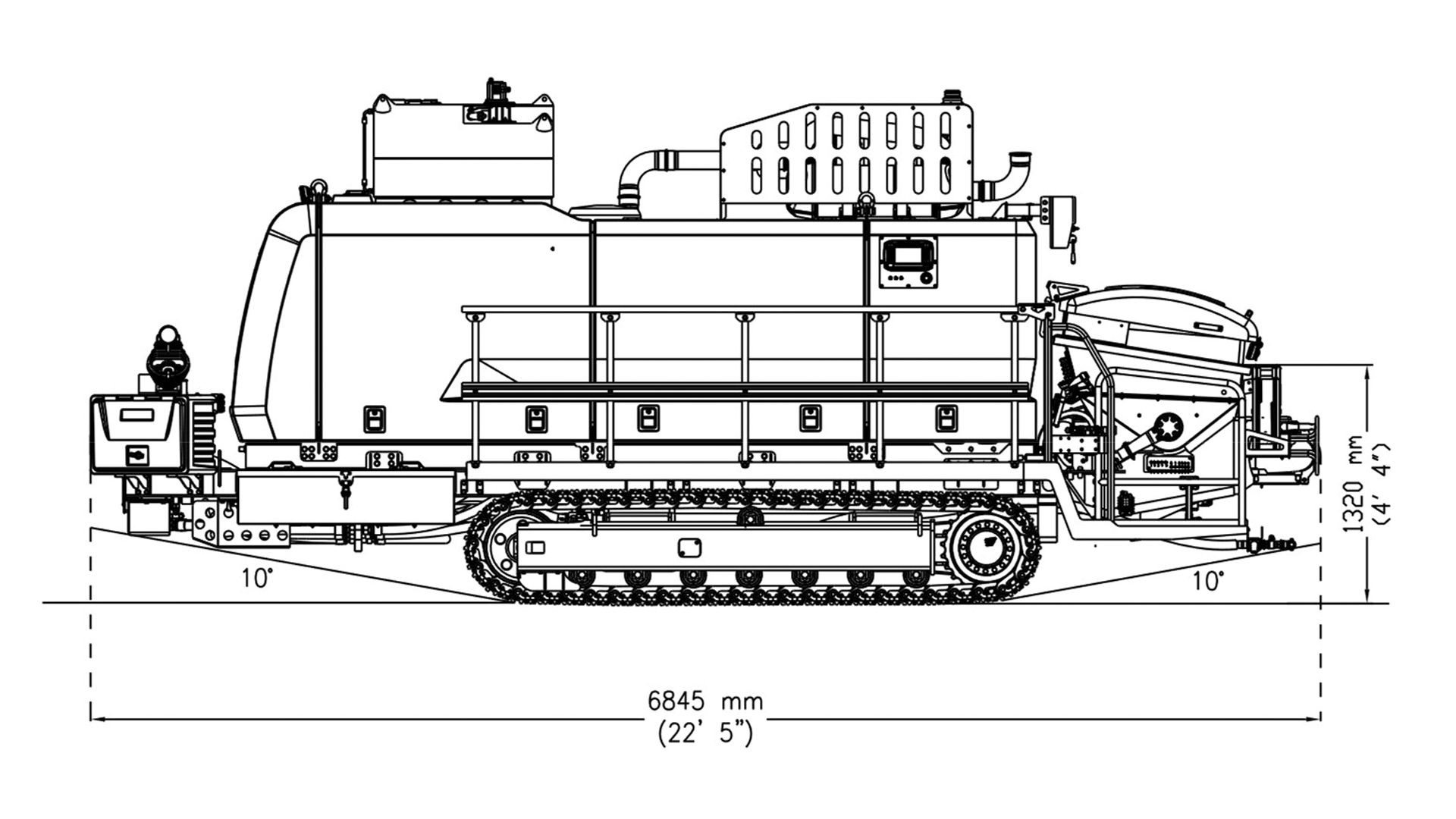

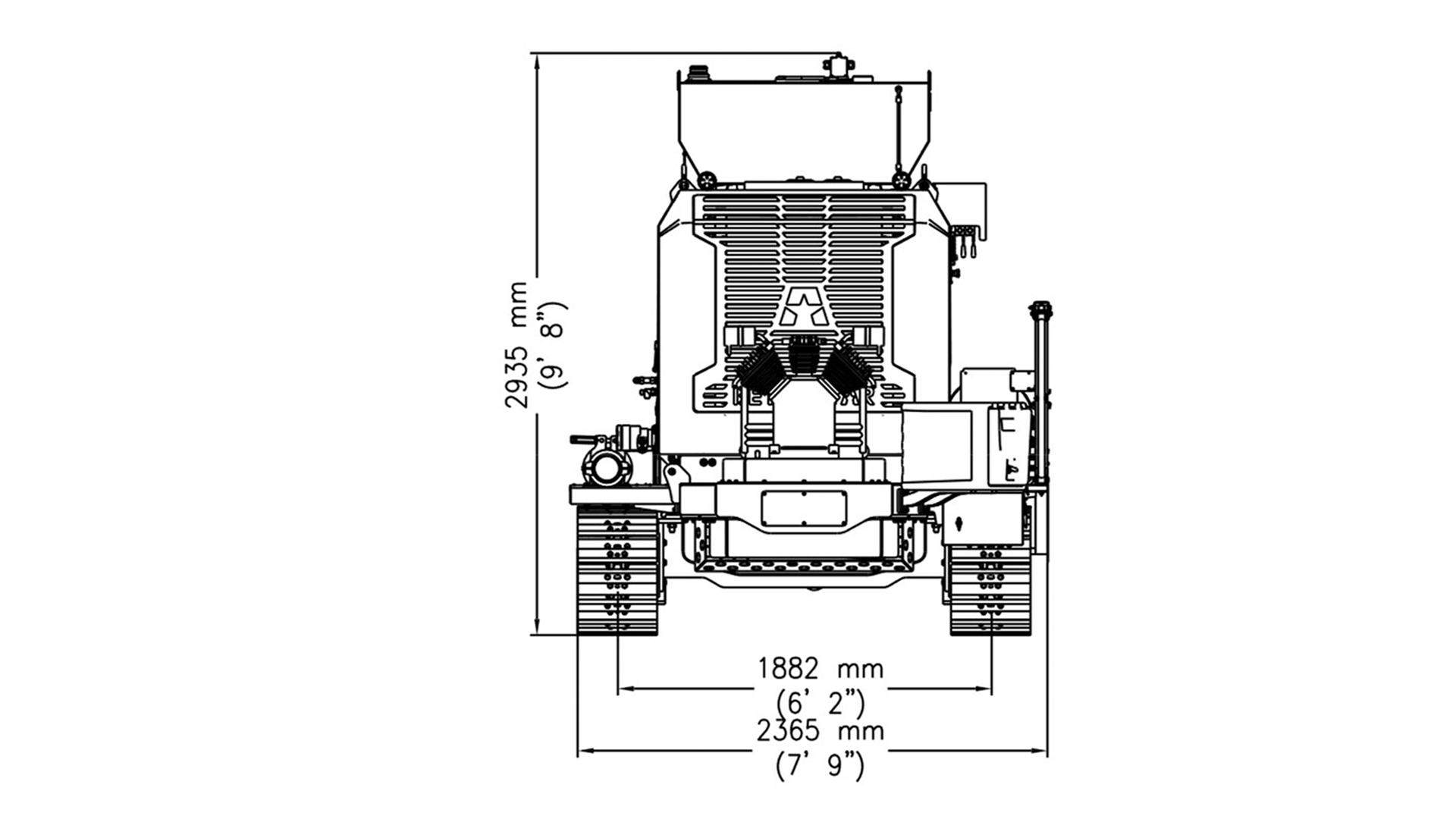

SUPPORT LEGS DIMENSIONS
SUPPORT LEGS DIMENSIONS
PUMPING UNIT

PUMPING UNIT                                    BSC 21.90               BSC 14.90

Rod Side

Theo. Conc. Output (max)

90 m³/ h (117,7 yd³ / h)

90 m³/ h (117,7 yd³ / h)

Theo. Conc. Pressure (max)

92 bar (1334 psi)

71 bar (1029,7 psi)

Stroke

23 Stroke / min

34 Stroke / min

Piston Side

Theo. Conc. Output (max)

56 m³/ h (73,2 yd³ / h)

61 m³/ h (79,8 yd³ / h)

Theo. Conc. Pressure (max)

148 bar (2146,5 psi)

106 bar (1537,4 psi)

Stroke

14 Stroke / min

23 Stroke / min

Concrete Valve : S Valve System

Switch-Over Pressure S-Tube : 190 bar (2755,7 psi)

Delivery Cylinders Diameter : 200 mm (7,87’’)

Delivery Cylinders Lenght : 2100 mm (82,6’’) (BSC 21.90) : 1400 mm (55,1’’) (BSC 14.90)

Hopper Capacity : 650 l (171,71 gal)

Hopper Outlet Diameter : 125 mm (4,92’’)

Reducer Output Diameter : 150 mm (5,9’’)

Switching System : Elect. Magn. Sensor

Lubrication System : Elec. Controlled Central System (LINCOLN)

Electric Box : IP65 PLC Controlled

CONTROL SYSTEM

■ Smartstar Control

■ Color LCD

■ Diagnostic

■ Fuel Saving Mode

■ Remote Control





GENERAL

GENERAL                                   BSC 21.90                   BSC 14.90

Weight

    10.500 kg

    (23.148 lbs)

 8.500 kg

 (18.739 lbs)

Maximum Speed

     2 km / h

2 km / h

OPTIONS

■ Hopper Vibrator

■ Hydraulic Driven Fan

■ Betonstar IoT System

■ Air Compressor

■ High Pressure Cleaning Kit (160bar / 2320 psi)

■ Water Pump (67 lpm) (17,7 gpm)

■ Water Tank Capacity 550 l (145.2 gal) and Hose 15 m (49’2’’)

ENGINE

ENGINE(*)       BSC 21.90                                  BSC 14.90

Power

185 kW (252 hp)

160 kW (214 hp)

WATER TANK AND PUMP
Water Pump: 67 lpm (17,7 gpm)
Water Tank Opacity: 550lt  (145.2 gal) and hose15m (49'2'')
