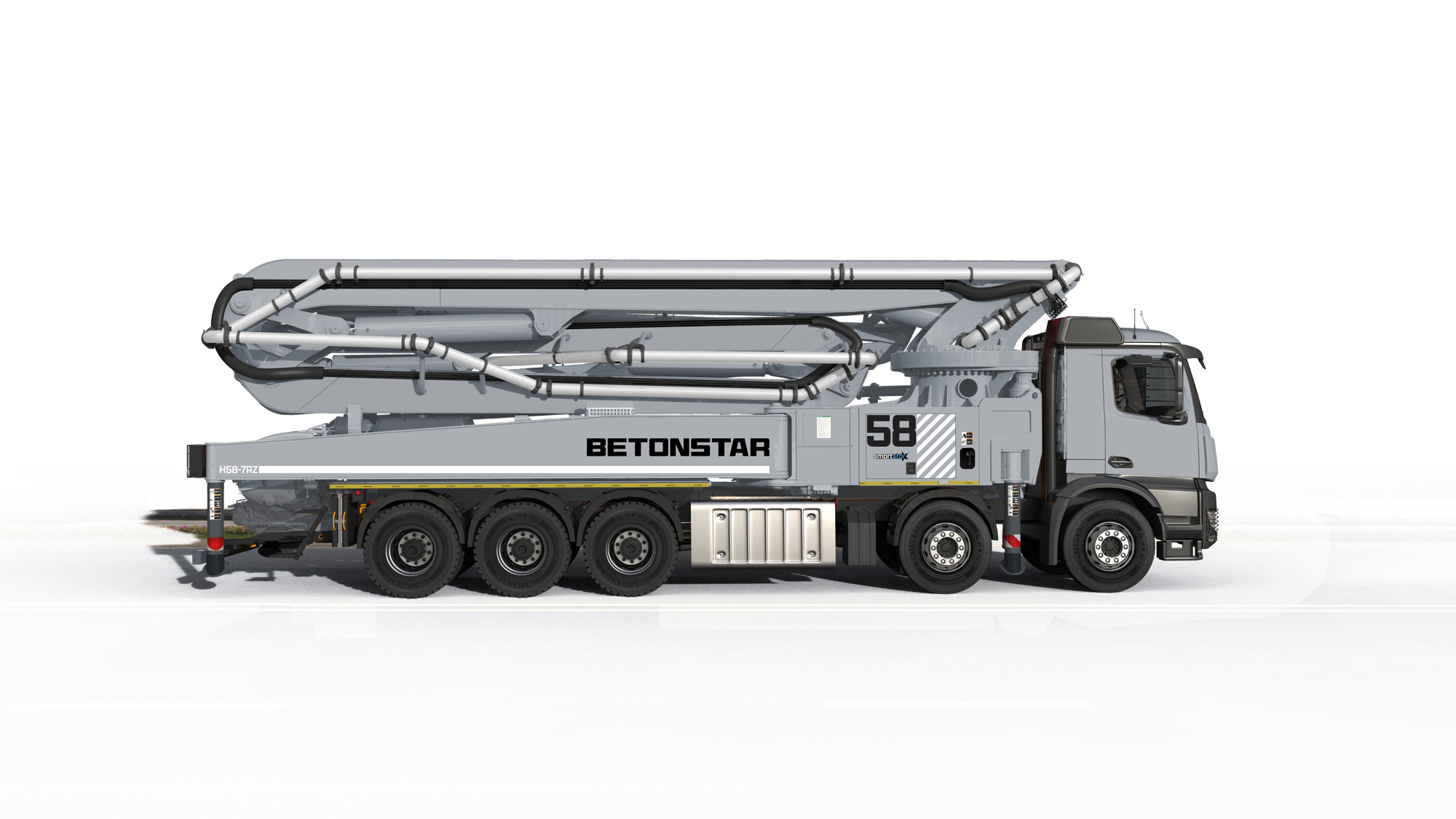

BST 58.14H 7RZ BST 58.16 7RZ
|
PUMP GROUP |
Standard |
Optional |
|
Theo. Conc. Output (max) (Piston Side) |
140 m³/ h |
160 m³/ h |
|
Theo. Conc. Pressure (max) (Piston Side) |
81 bar |
81 bar |
|
Stroke |
26 Stroke / min |
26 Stroke / min |
|
Concrete Cylinder Dimensions |
230 mm x 2100 mm |
250 mm x 2100 mm |
■ Hopper Vibrator
■ Hydraulic Driven Fan
■ Stability Control
■ Air Compressor
■ End Hose Squeeze Valve
■ High Pressure Cleaning Kit (140 bar)
■ Betonstar IoT System
■ Remote Control (HBC)
■ Auto Unfolding
■ Water and Oil Tank Heater
Hopper Capacity : 650 l
Switching System : Elect. Magn. Sensor
Concrete Valve : S Valve System
Electric Box : Waterproof and PLC Controlled
Remote Control : Included (HETRONIC)
End Hose : 3 m
Water Pump : 67 lpm
Water Tank Capacity : 650 l and Hose 15 m
Lubrication System : Hydraulic (LINCOLN)
Driven by : PTO or Gear Box
Front Legs : X
Rear Legs : Side Hydraulic Swing
Boom Type : 7RZ
Sections : 7
Boom Swing Time : 247 sec
Boom Swinging Angle : 365°
Concrete Pipe Diameter : 125 mm
■ Smartstar Control
■ Color LCD
■ Rear Keyboard
■ Diagnostic
■ Fuel Saving Mode
BST 58.14H 5RZ BST 58.16 5RZ
|
Theo. Conc. Output (max) (Piston Side) |
140 m³ / h (183,11 yd³ / h) |
160 m³ / h (209,27 yd³ / h) |
|
Theo. Conc. Pressure (max) (Piston Side) |
81 bar (1174,80 psi) |
81 bar (1174,80 psi) |
|
Stroke |
26 Stroke / min |
26 Stroke / min |
|
Concrete Cylinder Dimensions |
230 mm x 2100 mm (9,05” x 82,68”) |
250 mm x 2100 mm (9,84” x 82,68”) |
■ Hopper Vibrator
■ Hydraulic Driven Fan
■ Stability Control
■ Air Compressor
■ End Hose Squeeze Valve
■ High Pressure Cleaning Kit (135 bar / 1958 psi)
■ Betonstar IoT System
■ Remote Control (HBC)
■ Tool Boxes (If space is available)
■ Water and Oil Tank Heater
■ Leg Fuel Tank
Hopper Capacity : 650 l (171,71 gal)
Main Hydraulic Pump : 2 x A4 VG 125 Tandem (REXROTH)
Switching System : Proximity Switch
Concrete Valve : S Valve System
Electric Box : Waterproof and PLC Controlled
Remote Control : Included (HETRONIC)
End Hose : 3 m (9’ 10”) 5,5” Diameter
Water Pump : 67 lpm (17,7 gpm)
Water Tank Capacity : 650 l (171 gal) and Hose 15 m (49’ 2”)
Lubrication System : Hydraulic (LINCOLN)
Driven by : Gear Box (Stiebel)
Outrigger Pads : 4 Thermoplastic
Front Legs : X
Rear Legs : Side Hydraulic Swing
Boom Type : 5RZ
Sections : 5
Boom Swing Time : 222 sec
Boom Swinging Angle : 365°
Concrete Pipe Diameter : 125 mm (5,5’’)
■ Smartstar Control
■ Color LCD
■ Rear Keyboard
■ Diagnostic
■ Fuel Saving Mode
■ 2nd Back up Radio Remote and Receiver
