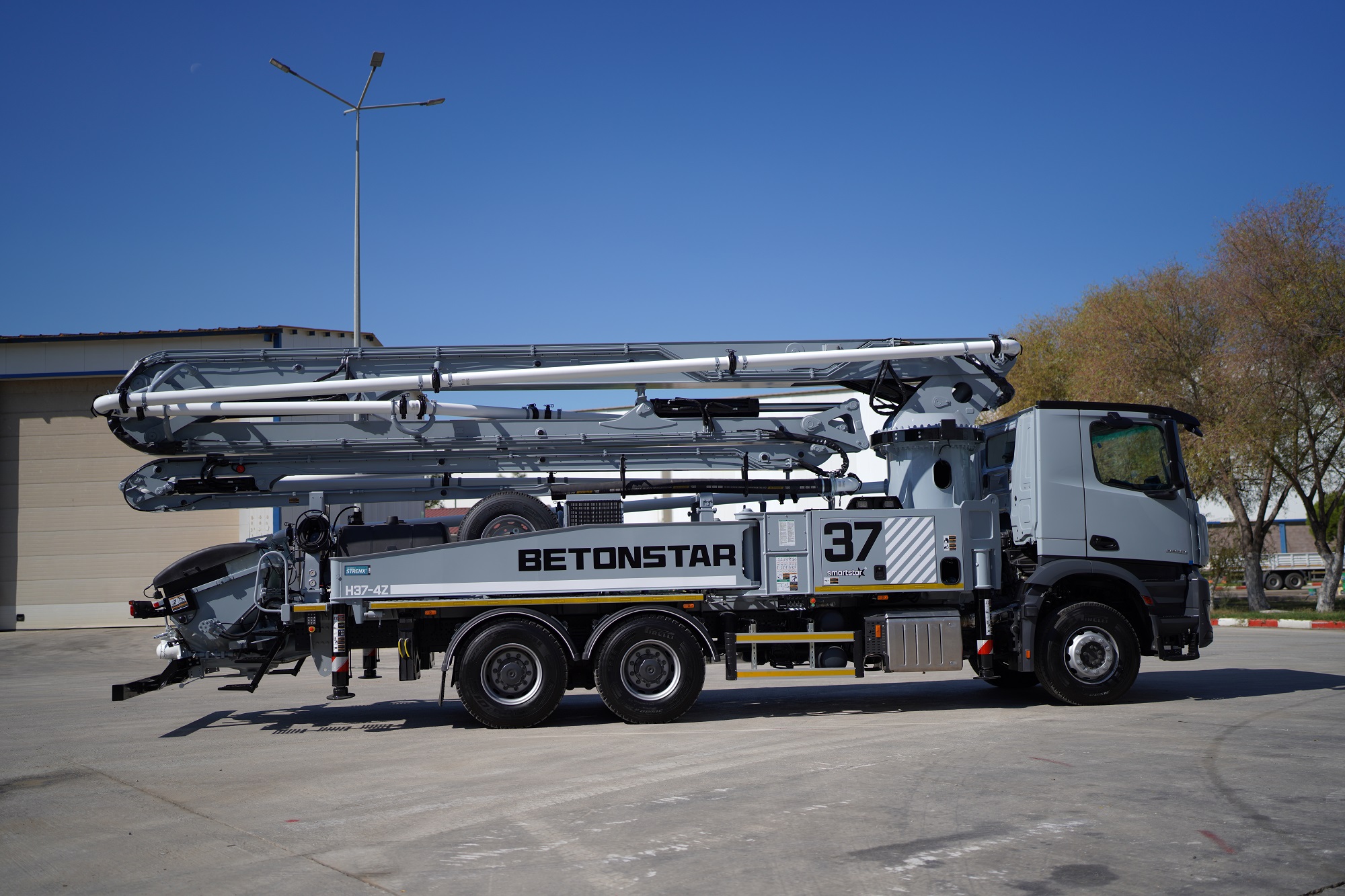

BST 37.14 4Z
|
PUMP GROUP |
Standard |
|
Theo. Conc. Output (max) (Rod Side) |
140 m³/ h |
|
Theo. Conc. Pressure (max) (Rod Side) |
69 bar |
|
Stroke |
26 Stroke / min |
|
Concrete Cylinder Dimensions |
230 mm x 2100 mm |
■ Hopper Vibrator
■ Hydraulic Driven Fan
■ Stability Control
■ Air Compressor
■ End Hose Squeeze Valve
■ High Pressure Cleaning Kit (140 bar)
■ Betonstar IoT System
■ Remote Control (HBC)
■ Auto Unfolding
■ Water and Oil Tank Heater
Hopper Capacity : 650 l
Switching System : Elect. Magn. Sensor
Concrete Valve : S Valve System
Electric Box : Waterproof and PLC Controlled
Remote Control : Included (HETRONIC)
End Hose : 3 m
Water Pump : 67 lpm
Water Tank Capacity : 650 l and Hose 15 m
Lubrication System : Hydraulic (LINCOLN)
Driven by : PTO or Gear Box
Front Legs : X
Rear Legs : Side Hydraulic Swing
Boom Type : 4Z
Sections : 4
Boom Swing Time : 113 sec
Boom Swinging Angle : 365°
Concrete Pipe Diameter : 125 mm
■ Smartstar Control
■ Color LCD
■ Rear Keyboard
■ Diagnostic
■ Fuel Saving Mode
