PUMP GROUP |
BST 30.90 4Z (STD.) |
BST 30.14S 4Z (OPT.) |
BST 30.16S 4Z (OPT.) |
|
Theo. Conc. Output (Piston Side) |
90 m³/ h |
140 m³/ h |
160 m³/ h |
|
Theo. Conc. Pressure (Piston Side) |
81 bar |
81 bar |
81 bar |
|
Stroke |
26 Stroke / min |
29 Stroke / min |
29 Stroke / min |
|
Concrete Cylinder Dimensions |
230 mm x 1400 mm |
230 mm x 1900 mm |
250 mm x 1900 mm |
■ Smartstar Control
■ Color LCD
■ Rear Keyboard
■ Diagnostic
■ Fuel Saving Mode
■ Hopper Vibrator
■ Hydraulic Driven Fan
■ Stability Control
■ Air Compressor
■ End Hose Squeeze Valve
■ High Pressure Cleaning Kit (140 bar)
■ Side Box
■ Betonstar IoT System
■ Remote Control (HBC)
■ Auto Unfolding
■ Water and Oil Tank Heater
Hopper Capacity : 650 l
Switching System : Elect. Magn. Sensor
Concrete Valve : S Valve System
Electric Box : Waterproof and PLC Controlled
Remote Control : Included (HETRONIC)
End Hose : 3 m
Water Pump : 67 lpm
Water Tank Capacity : 650 l and Hose 15 m
Lubrication System : Hydraulic (LINCOLN)
Driven by : PTO or Gear Box

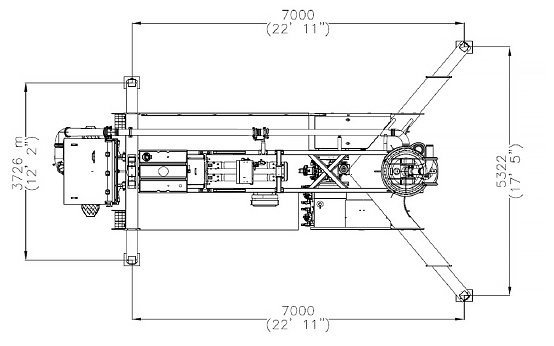

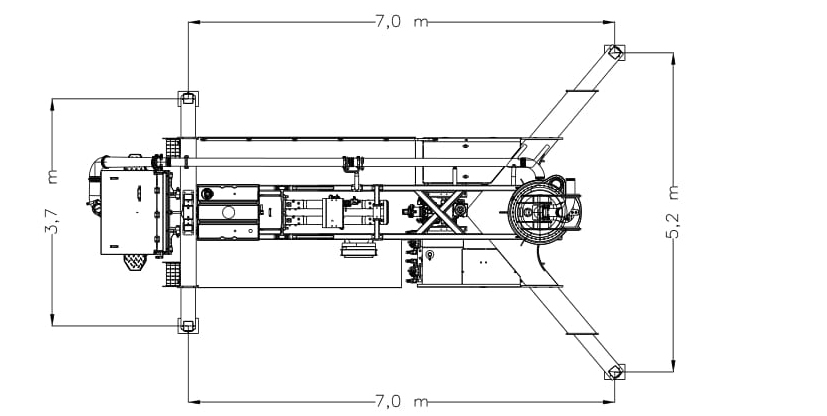

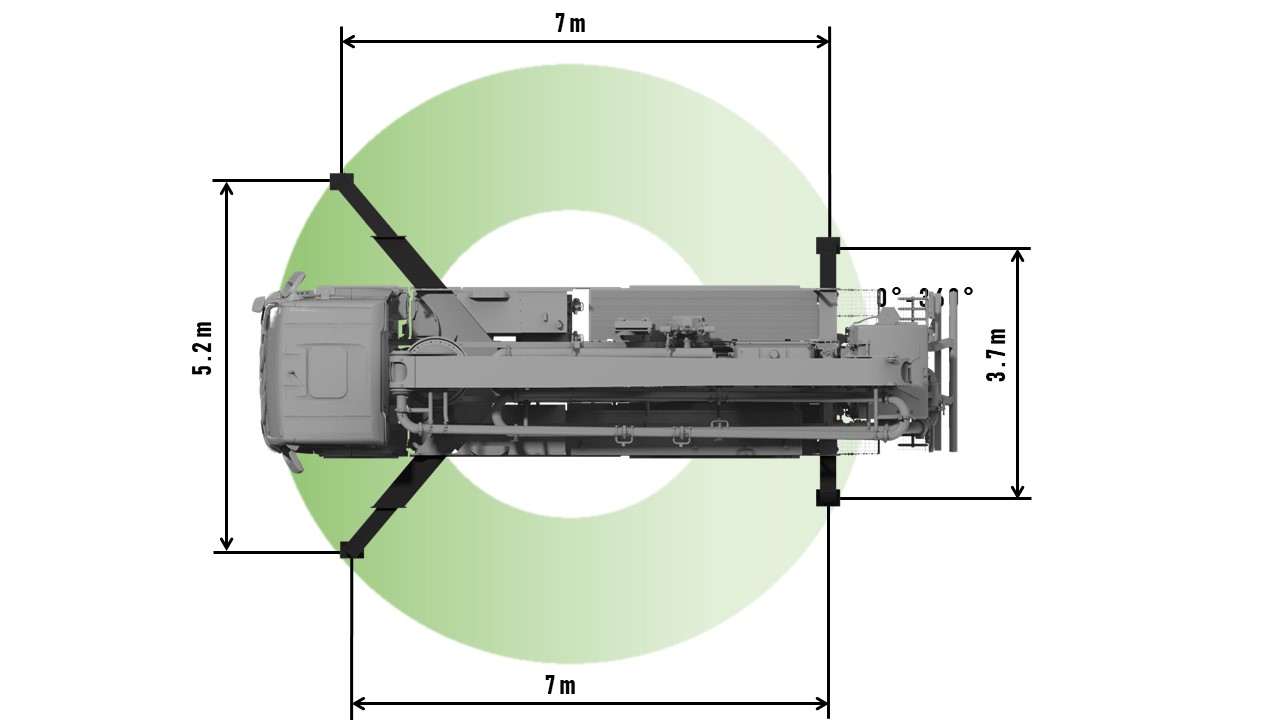

Front Legs : X
Rear Legs : Sliding Support

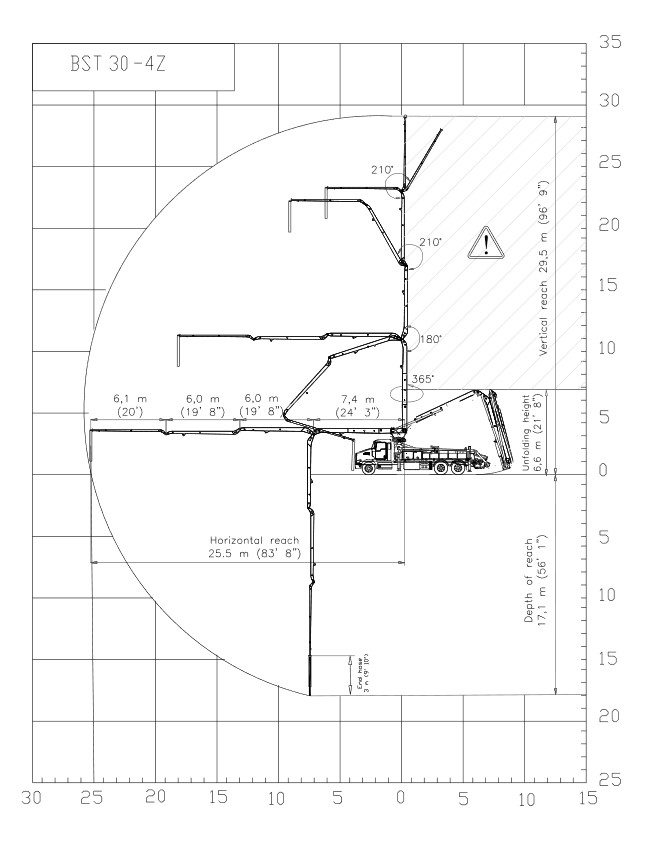

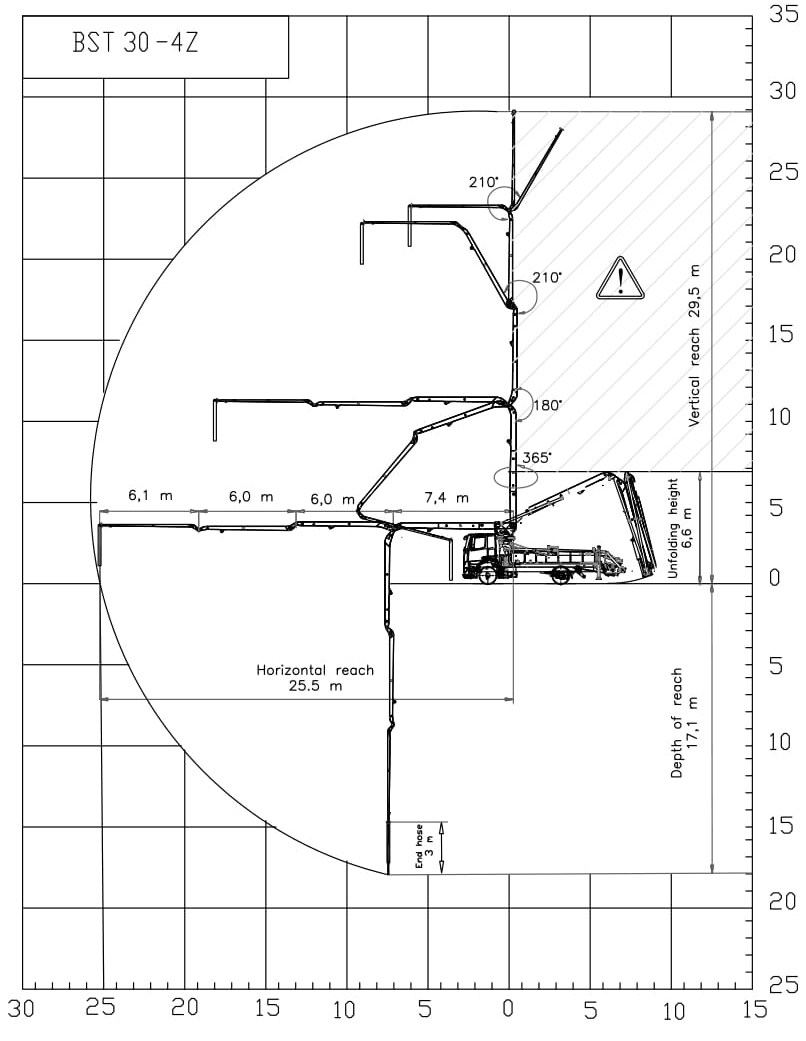

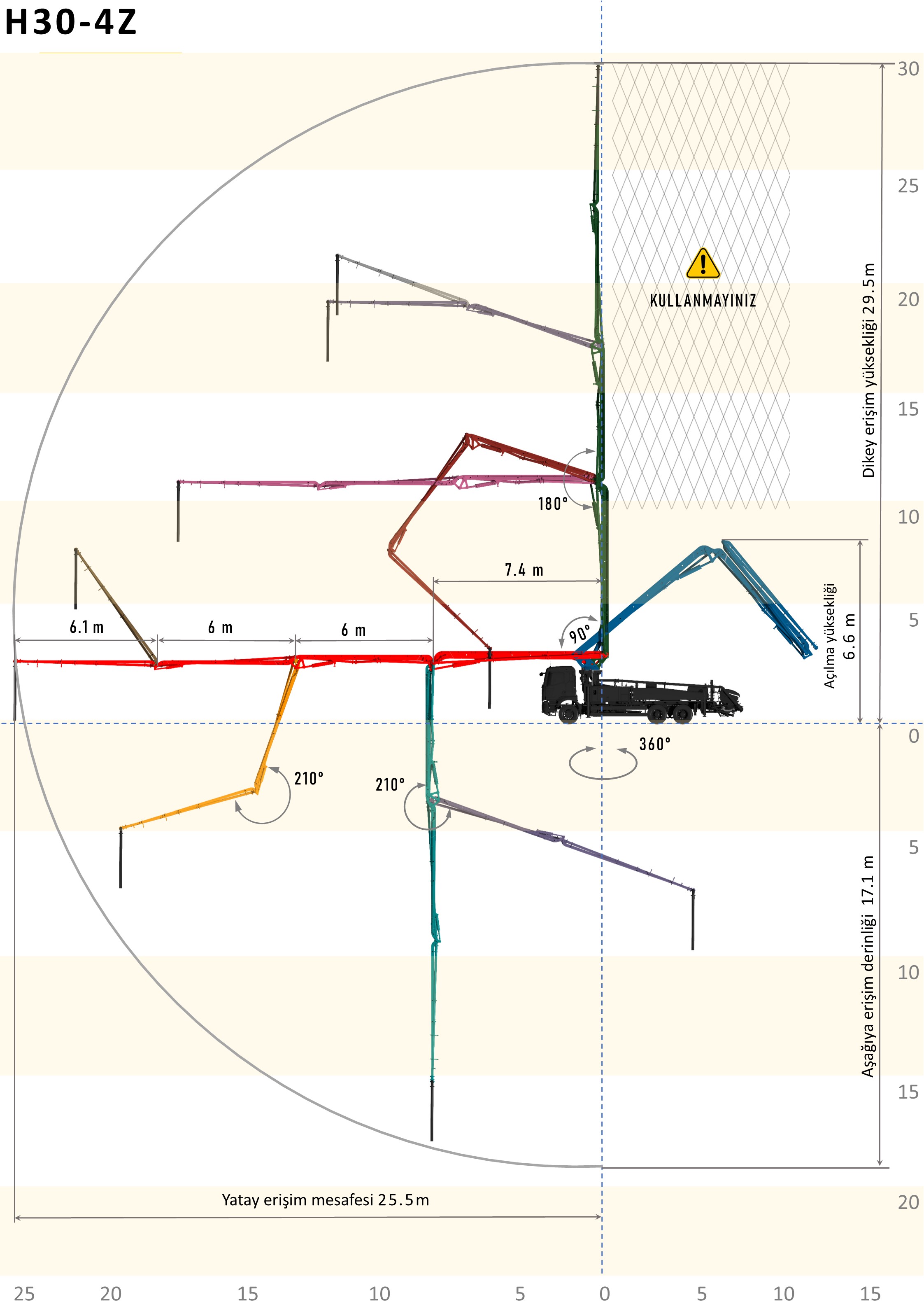

Boom Type : 4Z
Sections : 4
Boom Swing Time : 104 sec
Boom Swinging Angle : 365°
Concrete Pipe Diameter : 125 mm
| PUMP GROUP | BST 30.14H 4Z (OPT.) | BST 30.16 4Z (STD.) |
|
Theo. Conc. Output (Piston Side) |
140 m³ / h (183,11 yd³ / h) |
160 m³ / h (209,27 yd³ / h) |
|
Theo. Conc. Pressure (Piston Side) |
85 bar (1232,82 psi) |
85 bar (1232,82 psi) |
|
Stroke |
26 Stroke / min |
26 Stroke / min |
|
Concrete Cylinder Dimensions |
230 mm x 2100 mm (9,05” x 82,68”) |
250 mm x 2100 mm (9,84” x 82,68”) |
■ Hopper Vibrator
■ Hydraulic Driven Fan
■ Stability Control
■ Air Compressor
■ End Hose Squeeze Valve
■ High Pressure Cleaning Kit (160 bar / 2320 psi)
■ Betonstar IoT System
■ Tool Boxes (If space is available)
■ Water and Oil Tank Heater
Hopper Capacity : 650 l (171,71 gal)
Switching System : Electromagnetic Sensor
Concrete Valve : S Valve System
Electric Box : IP65 PLC Controlled
Remote Control : HBC Remote Control
End Hose : 3 m (9’ 10”) 4” Diameter
Water Pump : 67 lpm (17,7 gpm)
Water Tank Capacity : 650 l (171 gal) and Hose 15 m (49’ 2”)
Lubrication System : Electrically Controlled Central System (LINCOLN)
Driven by : Gear Box (Stiebel)
Front Legs : X
Rear Legs : Sliding Support
Boom Type : Z
Sections : 4
Boom Swing Time : 107 sec
Boom Swinging Angle : 365°
Concrete Pipe Diameter : 125 mm (4,92’’)
■ Smartstar Control
■ Color LCD
■ IP69K Electronic Keypad
■ Diagnostic
■ Fuel Saving Mode
■ 2nd Back up Radio Remote and Receiver
