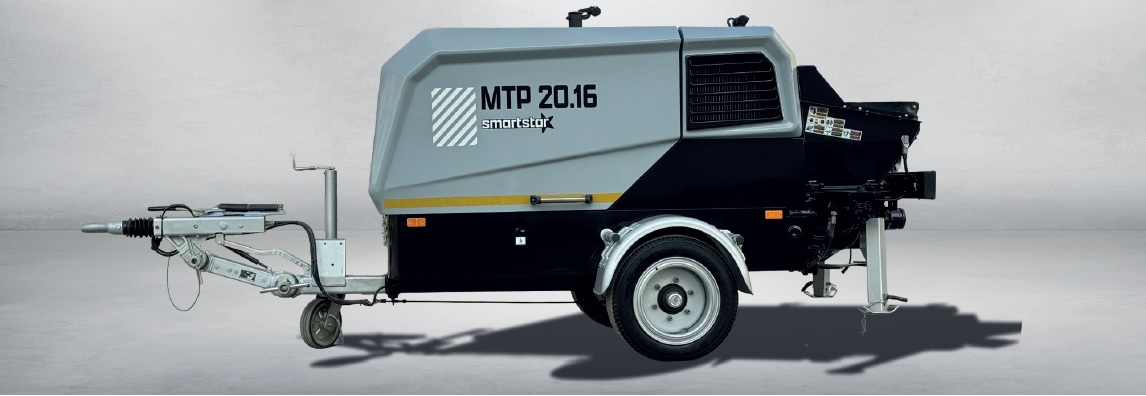

Mini Römork Pompası

MTP 20.16 D

Avrupa Versiyon Amerika Versiyon
TEKNİK DETAYLAR
TEKNİK DETAYLAR
GENEL

Weight : 2100 kg

MOTOR

Power : 44.5 kW (60 hp) (Diesel)

POMPALAMA ÜNİTESİ

Theo. Conc. Output(max) : 21 m3/h

Theo. Conc. Pressure(max) : 80 bar

Stroke : 29 Stroke/min

Drive Cylinder Diameter : 80/45 mm

Delivery cylinders diameter : 150 mm

Delivery cylinders stroke : 700 mm

Hopper capacity : 250 L

Hopper outlet diameter : 100 mm

Maximum particle size : 16 mm

Switching System : Elect. Magn. Sensor

Lubrication System : Hydraulic (LINCOLN)

Electric Box : Waterproof and PLC controlled

KONTROL SİSTEMİ

■ Smartstar Control

■ Color LCD

■ Diagnostic

■ Fuel Saving Mode

■ Remote Control

SEÇENEKLER

■ High pressure cleaning kit

Power

: 3.1 kW

Water pressure

: 138 bar

Water flow

: 10.6 L/min

Hose reel

: Automatic hose reel

Hopper vibrator

TEKNİK DETAYLAR
TEKNİK DETAYLAR
GENEL

Weight : 2100 kg (952,6 lbs)

MOTOR

Power : 44.5 kW (60 hp) (Diesel)

POMPALAMA ÜNİTESİ

Theo. Conc. Output(max) : 21 m3/h

Theo. Conc. Pressure(max) : 80 bar (1160 psi)

Stroke : 29 Stroke/min

Drive Cylinder Diameter : 80/45 mm (3,15”/1,77”)

Delivery cylinders diameter : 150 mm (5,9”)

Delivery cylinders stroke : 700 mm (2’4”)

Hopper capacity : 250 L (66 gal)

Hopper outlet diameter : 100 mm (3,93”)

Maximum particle size : 16 mm (0,63”)

Switching System : Elect. Magn. Sensor

Lubrication System : Hydraulic (LINCOLN)

Electric Box : Waterproof and PLC controlled

KONTROL SİSTEMİ

■ Smartstar Control

■ Color LCD

■ Diagnostic

■ Fuel Saving Mode

■ Remote Control

SEÇENEKLER

■ High pressure cleaning kit

Power

: 3.1 kW

Water pressure

: 138 bar (2002 psi)

Water flow

: 10.6 L/min

Hose reel

: Automatic hose reel

■ Hopper vibrator
